| Model |

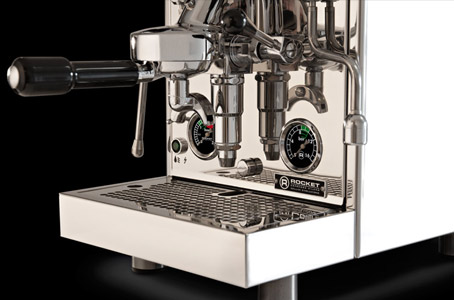

Giotto Evoluzione |
| Bodywork |
Available in Giotto body style. All stainless steel (AISI 304) |
| Brewing Group Head |
A Commercial E61 style Chrome plated solid Brass Group Head.
Weight is 4.05 kg (9 lbs). |
| Pre-infusion |
This E61 style group head has a generously dimensioned static pre-infusion chamber system. This reflects into the smoothest espresso coffee extraction for optimum aroma, body and “crema”. |
| Thermosyphon System |
The Superior design and layout of the Evoluzione V2 Thermosyphon System results in a stable and optimum extraction temperature. This generously dimensioned
Thermosyphon System has 20% higher volume as compared with other machines in this category on the market. |
| Boiler |
The Boiler is made of pure copper (Cu. 99.9%) with a lead free heavy brass end
plate to increase thermal retention for a dryer steam quality. This results in
approximately 40% more power efficiency versus other boiler systems. The Boiler quality is superbly finished in a insulated thermal boiler wrap for protection against copper oxidation and ultimate heat stability. Boiler capacity: 1.8 litres. |
Pressure Stat Control
Switch |
The Evoluzione V2 comes with a full size commercially rated pressure stat switch
(allowing incremental changes of 0.0350C temperature differential settings). |
Steam Wand &
Hot Water Arm |
Stainless steel steam wand with our patented cool-touch (Non-Burn) technology:
(Only the nozzle gets hot); easy cleaning as milk doesn’t bake on wand; more
efficient steam as heat is not dissipated around the wand. The steam nozzle is designed for easy milk texturing for fine foam. |
Electronically
Controlled |
Automatic Microprocessor controlled levels for the boiler and fresh water reservoir.
With low water level indication warning system. |
| Pump & Motor Type |
Full commercial rotary pump driven by a commercial 120 watts motor. External access to rotary pump for pressure adjustment between Mains connection or Tank Reservior supply. |
| Water Supply |
The choice between drawing from the internal 2.9L fresh water reservoir, or alternatively, changing the control switches over to draw from a direct water connection (mains Water-hard plumbed option). A full drip tray drainage system and stainless steel braided hosing is supplied. |
| Heating Element |
An Optimised boiler capacity to Thermosyphon system ratio. This results in a fast
heat up time via the 1300 watt element, made from special long life material
(5 times longer than normal elements). 10 Amp power requirement. |
| Safety Valve Feature |
Fully certified commercially rated safety valve. |
| Dimensions |
ON BENCH: Weight: 28kg. Height: 39cm. Width: 33cm. Depth: 42cm
BOXED CARTON: Weight: 32kg. Height: 54cm. Width: 39cm. Depth: 50cm |
| Additional Extras |
Professional 58mm alloy Rocket branded tampa.
Full size commercial one and two cup filter handles and baskets.
Full training guide and instructions DVD & Booklet.
Technical phone support on 1300 326 326 |
